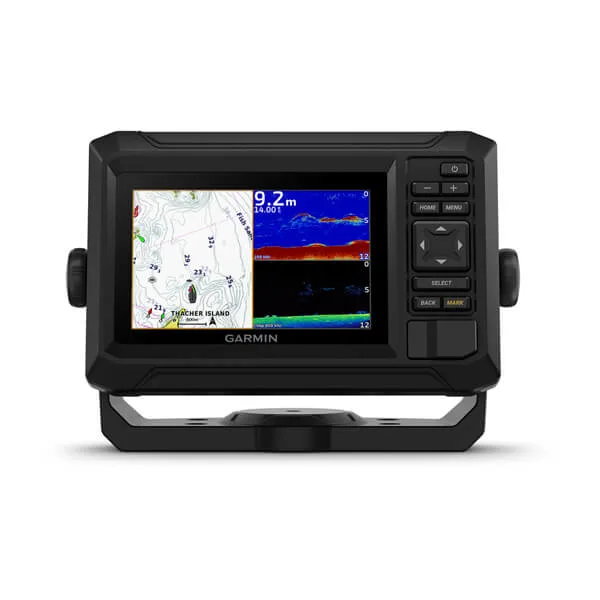

Garmin Echomap UHD2 55 Cv

by Garmin
Original price $789.00 - Original price $789.00
Original price $789.00
$789.00
$789.00 - $789.00
Current price $789.00
Availability:
Low stock
They say locals know best. But anyone who says that hasn’t fished with the ECHOMAP UHD2 5″ and 7″ chartplotters with clear, crisp sonar and mapping.
  • With crisp, clear traditional sonar and brilliant ClearVü sonar, the fish will have nowhere to hide.
  • High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
  • Your ECHOMAP UHD2 device supports a variety of Garmin transducers for two types of sonar: Garmin traditional and ClearVü scanning sonars.
  • Know the waters you’re in as if you grew up fishing them by using built-in BlueChart g3.
  • If you have another compatible ECHOMAP UHD2 chartplotter on your boat, the 5″ and 7″ models can wirelessly share information — such as sonar, waypoints and routes — with them.
  • Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, software updates, Garmin Quickdraw™ Community data and more2.



General

DIMENSION 9.1″ x 5.6 x 2.6″ (23.2 x 14.3 x 6.7 cm)
INPUT Keyed
DISPLAY SIZE 6.1″ x 3.4″ (15.5 x 8.7 cm)
DISPLAY RESOLUTION 800 x 480 pixels
DISPLAY TYPE WVGA, TN
WEIGHT 1.5 lbs (0.7 kg)
WATERPROOF IPX7
MOUNTING OPTIONS Bail or flush

Maps & Memory

ACCEPTS DATA CARDS 1 microSD™ card; 32 GB maximum size
WAYPOINTS 5000
TRACK POINTS 50000
TRACKS 50 saved tracks
NAVIGATION ROUTES 100

Sensors

HAS BUILT-IN RECEIVER
RECEIVER 5 Hz
GPS
SUPPORTS WAAS

Built-in Maps

BLUECHART (COASTAL) Yes (see Additional)
LAKEVU (INLAND) yes (see Additional)
TIDE TABLES yes (see Additional)

Optional Map Support

LAKEVÜ G3
LAKEVÜ G3 ULTRA
GARMIN NAVIONICS+™
GARMIN NAVIONICS VISION+™
TOPO
STANDARD MAPPING
GARMIN QUICKDRAW CONTOURS

Chartplotter Features

ACTIVECAPTAIN MOBILE PLANNING COMPATIBLE

Sonar Features & Specifications

DISPLAYS SONAR
POWER OUTPUT 500W
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
CLEARVÜ Built-in 260/455/800/1000/1200 kHz

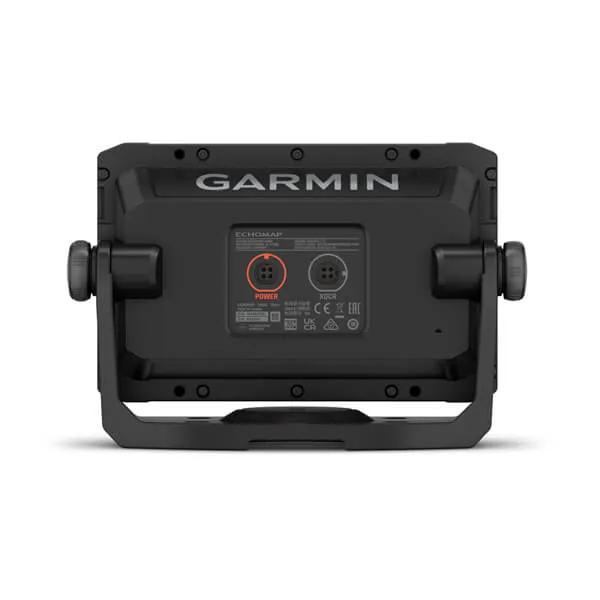

Connections

4-PIN TRANSDUCER PORTS 1
GARMIN WI-FI NETWORK (LOCAL CONNECTION)

Electrical Features

POWER INPUT 9 to 18 Vdc
TYPICAL CURRENT DRAW AT 12 VDC 1 A
MAXIMUM CURRENT DRAW AT 12 VDC 1.5 A
MAXIMUM POWER USAGE AT 10 VDC 18W

Additional

ADDITIONAL
  • BlueChart (coastal): 54cv U.S. BlueChart g3, 55cv U.K./Ireland BlueChart g3, 55cv Australia/New Zealand BlueChart g3, 74cv U.S. BlueChart g3, 75cv UK/Ireland BlueChart g3, 75cv Australia/New Zealand BlueChart g3
  • Tide tables: 53cv, 54cv, 55cv, 73cv, 74cv, 75cv
